Ranges
-
VGR5364GSSLP
(Ranges - Gas)This 36-inch wide Viking, 5 Series gas range with 4 burners and griddle. This range features VSH™ Pro sealed burner System, VariSimmer™ setting on all burners, SureSpark™ ignition system and Gourmet-Glo™ gas infrared broiler.
Product Features / Choose an option
GOURMET-GLO™ GAS INFRARED BROILER
Lock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
PORCELAINIZED COOKING SURFACE
Keep spills in one place with the raised edges of our exclusive one-piece tooled porcelainized cooking surface. Raised edges around perimeter seal top to completely contain spills. Porcelanized for easy cleaning, durability and long lasting finish.
PROFLOW™ CONVECTION BAFFLE
Bake breads and cakes to lofty perfection with the incredibly even heat circulation of the ProFlo™ Convection Baffle system. Each ProFlow™ Baffle has been engineered specifically for each oven cavity to maximize even cooking.
SURESPARK™ IGNITION SYSTEM
The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
VARISIMMER™ SETTING
The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
VSH™ PRO SEALED BURNER SYSTEM
Cook like a pro with up to 18,500 BTUs and infinite settings of easy-to-clean high performance sealed burners. A combination of a unique patented burner and surface design provides cleanability plus superior performance at any temperature setting.
| GENERAL | |
|---|---|
| Series Name | 5 Series |
| Fuel Type | Liquid Propane |
| Installation Type | Freestanding |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Appliance Care |
• One-Piece Tooled and Porcelainized Cooking Surface for Easy Cleanup • Burner Caps are Easily Removable for Quick Cleaning |
| COOKTOP | |
| Burners/Elements | 5 |
| Burners/Elements Output |
• (1x) Burner TruPowerPlus™: 16,600 BTU • (3x) Burners: 12,500 BTU • (1x) Griddle: 12,500 BTU |
| Burner/Element Size | 12" Griddle |
| Burners | Sealed |
| Other | Griddle |
| OVEN | |
| Capacity (cu. ft.) | 5.1 cu.ft. |
| Number of Ovens | Single |
| Programs |
• Natural Airflow Bake • Convection Bake • Infrared Broil • Convection Infrared Broil • Convection Dehydrate • Convection Defrost |
| FEATURES | |
| Technologies |
• VSH™ Pro Sealed Burner System • VariSimmer™ Setting • SureSpark™ Ignition System • Gourmet-Glo™ Gas Infrared Broiler • Gentle Close™ Door • ProFlow™ Convection Baffle |
| Convection | Yes |
| Oven Light | Yes |
| Additional Information |
• Porcelainized Cooking Surface • 6 Oven Rack Positions • 3 Racks • Two Halogen Oven Lights • Broil Burner: 16,000 BTU • Bake Burner: 30,000 BTU • Automatic Re-Ignition; Surface Burners Light at any Position on the Knob and Re-light if Extinguished, Even on Lowest Setting • Heavy-Duty BlackChrome™ Knobs and Square Bezels Shipped Standard • Heavy-Duty, Porcelainized, Cast-Iron Removable Surface Grates |
| ELECTRICAL INFORMATION | |
| Information |
• 120 V • 60 Hz • 1.5 A |
| ACCESSORIES | |
| Included | Island Trim (shipped standard with 36" range) |
| Optional |
• 8"H. Backguard – BG8536BSS • High Shelf – HS24536SS • Countertop Side Trim - P24CST • Countertop Rear Trim - P36CRT • Curb Base and Custom Curb Base Front - P36CBF4 • LP/Propane Conversion Kit - LPKPDR |
| DIMENSIONS | |
| Class Width | 36" |
| Width | 35.87 inch(es) / 91.1 cm |
| Height | 35.87 inch(es) / 91.1 cm |
| Depth (Without Handles) | 25.75 inch(es) / 65.4 cm |
| Depth (Including Handles) | 28.7 inch(es) / 72.9 cm |
| Additional Dimensions |
• Overall Height from Bottom: Base Height to Top of Side Trim – Minimum 35-7/8" (91.1 cm) to Maximum 37" (94 cm); Legs Adjust 1-1/8" (2.9 cm) • Overall Height from Bottom: Additions to Base Height To top of Island Trim – Add 1" (2.5 cm); to Top of Backguard – Add 8" (15.2 cm); to Top of High Shelf – Add 23 1/2" (59.7 cm) • Overall Depth from Rear: To end of Side Panel – 24 5/16" (61.8 cm); to Front of Door – 25-3/4" (65.4 cm); to End of Door Handle – 28-11/16" (72.9 cm) |
| SHIPPING DIMENSIONS | |
| Weight | 500.01 lb(s) / 226.8 kg |
| WARRANTY | |
| Warranty |
• Two-Year Full – Complete Product • Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items • 5-Year Limited – Gas Burners |
-
This Viking 24-inch dishwasher provide spotless dishes with three wash arms and a triple filtration system. + More
-
This 36-inch wide, Viking bottom-freezer refrigerator features ProChill™ temperature management, LED + More
-
Viking 30" conventional microwave hood. This conventional microwave hood offers the convenience of a + More
-
This 30-inch wide Viking chimney wall hood features halogen lighting, heat sensor and a 460 CFM blower
-
Viking 15" beverage center. The 15" undercounter/freestanding refrigerated beverage center features Dynamic + More
-
This Viking 24" undercounter wine cellar can store up to 40 bottles of wine. It features the Dynamic Cooling + More
-
This 24-inch wide Viking 7 Series integrated all freezer is equipped with an interior ice maker and features + More
-

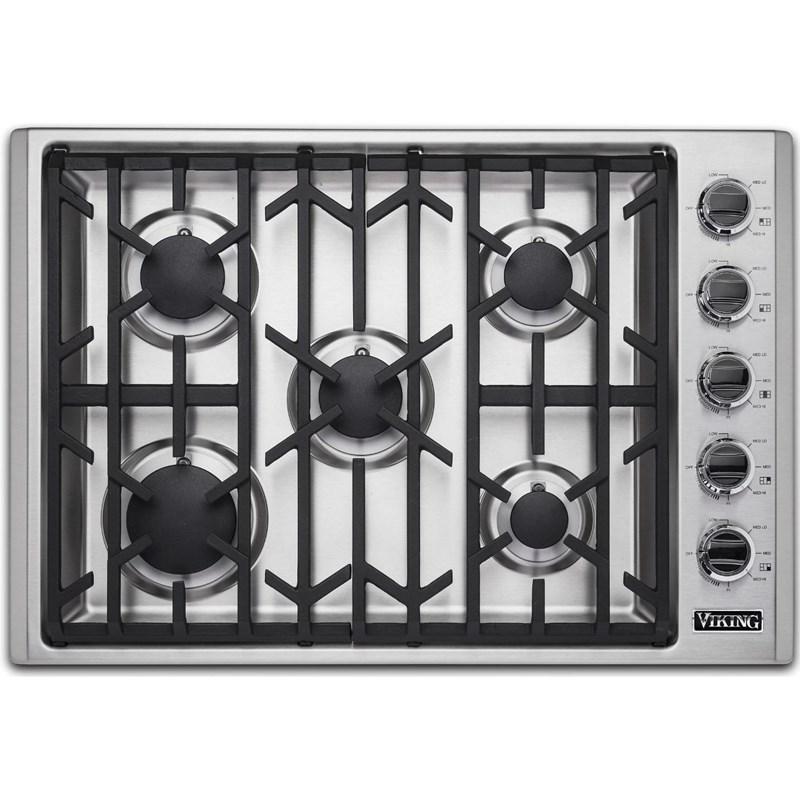

This 30-inch Viking 5 Series gas cooktop features SureSpark™ ignition system, 5 sealed burners and Black + More
-
