Ventilation
-
VCWH53648SS
(Ventilation - Hood Shells)This 36-inch wide Viking chimney wall hood shell features a heat sensor, bright LED lighting and backlit LED knobs. (Blower is sold separately).
Product Features / Choose an option
VIRTUALLY SEAMLESS DESIGN
Blend in and stand out with a smooth, clean look and a virtually seamless design.
HEAT LAMPS
Ready when you are. Heat lamps conveniently keep food warm until it is ready to be served.
HEAT SENSOR
Heat sensor automatically adjusts speed of blower to high when excessive heat is detected.
BRIGHT LED LIGHTING
Dimmable lighting controls provide custom illumination for enhanced surface cooking visibility. Long-life LED light bulbs are energy efficient and consumer replaceable.
QUIETEST HOOD AND VENTILATOR COMBINATION
Tough-box ventilator housing protects blower and quietly removes smoke and odor.

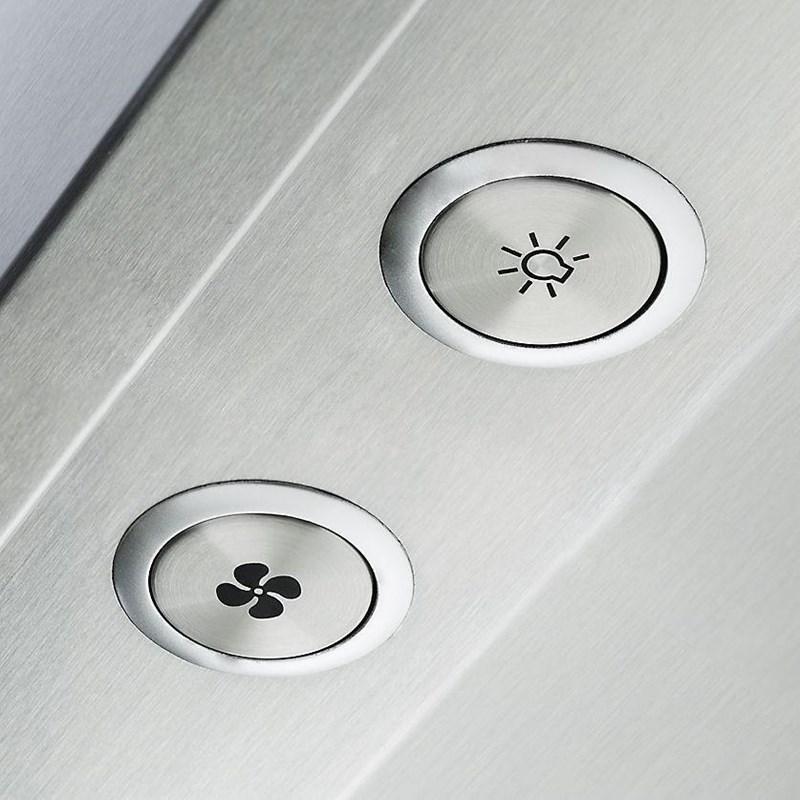

BACKLIT LED KNOBS
Backlit LED knobs extend and illuminate to control lighting level and fan speed, then fully retract when not in use.
| GENERAL | |
|---|---|
| Series Name | 5 Series |
| Blower Included | No |
| Style | Chimney |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Installation | Wall Mount |
| FEATURES | |
| Dishwasher-Proof Filters | Yes |
| Ducting Information |
• Interior Duct Size 7" • Exterior Duct Size 10" |
| Speeds | Multi-Speed Ventilator Control Knob |
| Additional Information |
• Dimmable Lighting Controls • 2 Long-Life LED Light Bulbs • Heat Lamps • 2 Commercial-Type Baffle Filters • Low-Profile Filter System • Tough-Box Ventilator Housing • Heat Sensor • Backlit LED Knobs |
| ACCESSORIES | |
| Optional |
• Interior-power Ventilator Kits – 300 CFM (VINV300), 600 CFM (VINV600), or 1,200 CFM (VINV1200) • Exterior-power Ventilator Kits – 900 CFM (DEV900), 1,200 CFM (DEV1200), or 1,500 CFM (DEV1500) • In-line-power Ventilator Kits – 1,200 CFM (DIL1200) • DCCE1210SS – Duct Cover Extensions • WGP36SS– Wall Hood Warming Shelf Panels • BKS36SS– Wall Hood Backsplash |
| DIMENSIONS | |
| Class Width | 36" |
| Width | 36 inch(es) / 91.44 cm |
| Height | 18 inch(es) / 45.72 cm |
| Depth | 24 inch(es) / 60.96 cm |
| WARRANTY | |
| Warranty |
• Two-Year Full – Complete Product • Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items • Five-Year Limited – All Ventilator Motors |
