Ranges
-

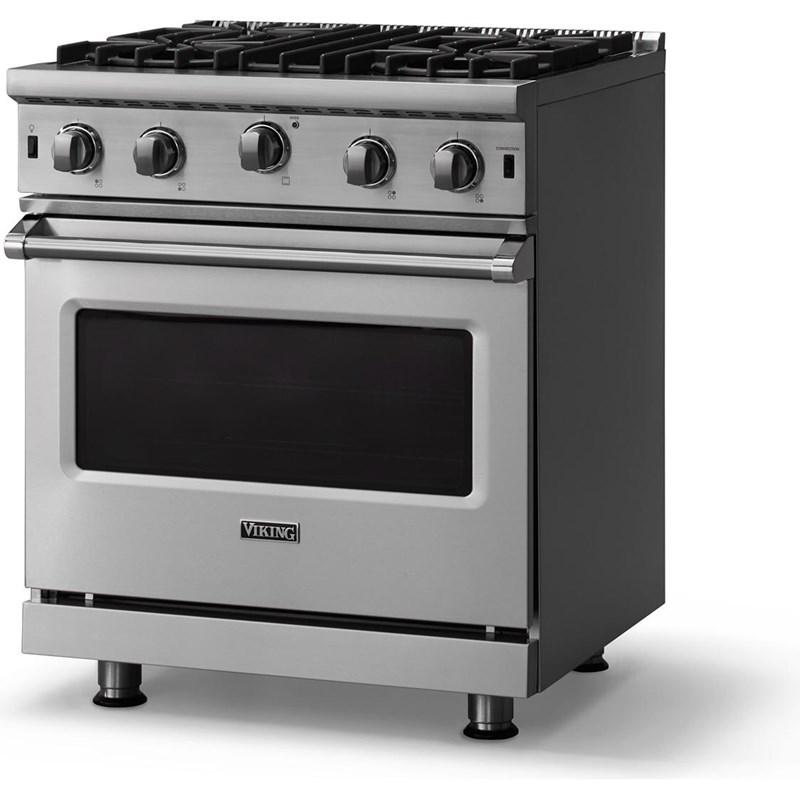

VGIC53024BSSLP
(Ranges - Gas)One of the original open burner ranges provides professional styling and a restaurant caliber burner for exceptional performance. A turn of the knobs delivers 15,000 BTUs of power down to the delicate VariSimmer setting. The large-capacity oven is equipped with a powerful 30,000 BTU u-shaped burner and ProFlow™ Convection Air Baffle to ensure perfectly even heat distribution. And six cooking functions from natural airflow baking to Gourmet-Glo infrared broiling deliver the power for any recipe.
Product Features / Choose an option

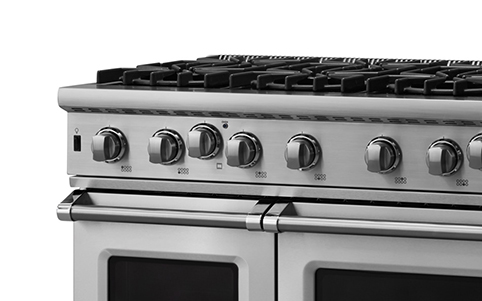

DELICIOUS DETAILED
Sculpted polished chrome bezels, stainless steel knobs, and a fully integrated color control panel bring new clarity and cohesion to the Viking 5 Series Range, refining its presence while honoring its iconic heritage.
GOURMET-GLO™ GAS INFRARED BROILER
Lock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
PROFLOW™ CONVECTION BAFFLE
Bake breads and cakes to lofty perfection with the incredibly even heat circulation of the ProFlo™ Convection Baffle system. Each ProFlow™ Baffle has been engineered specifically for each oven cavity to maximize even cooking.

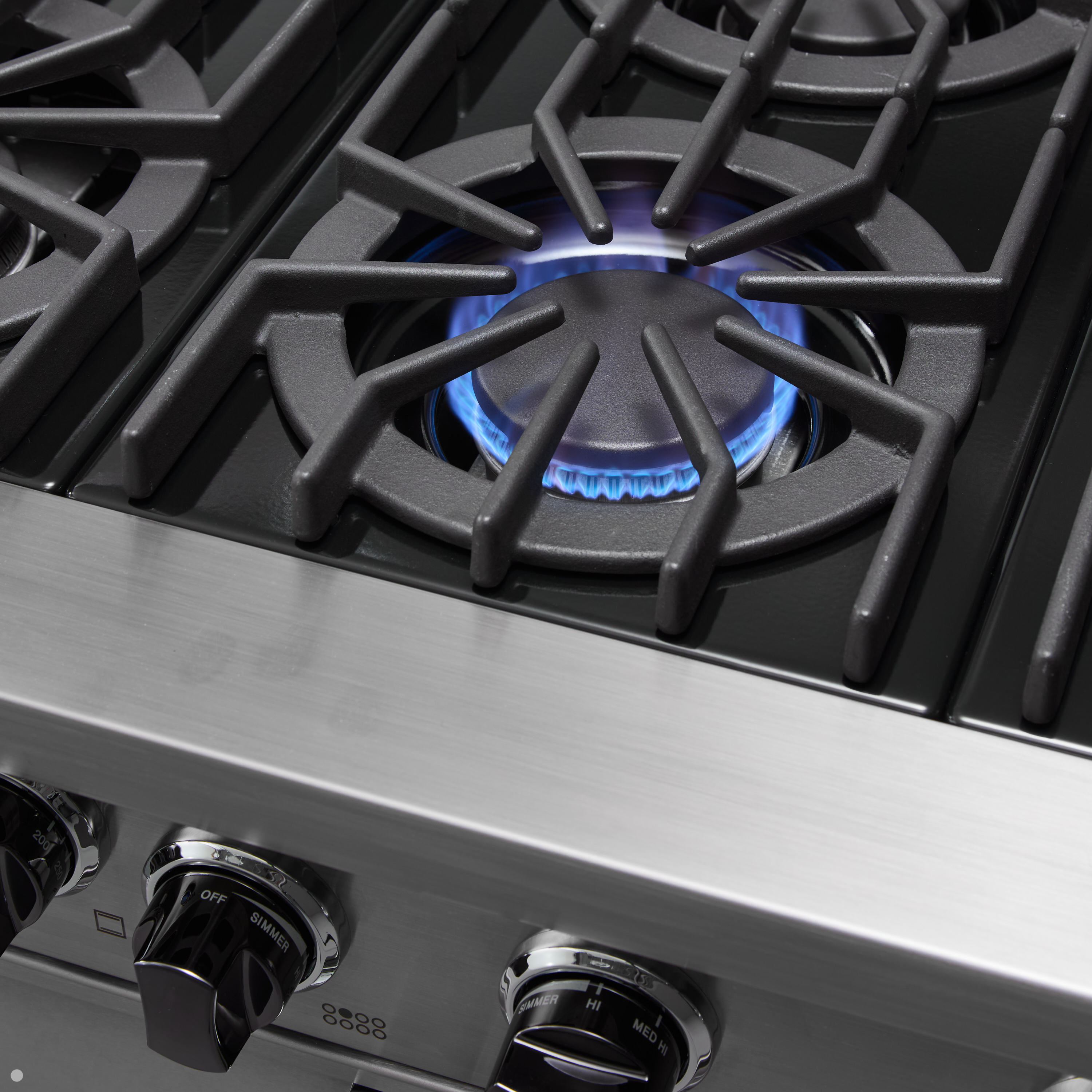

COMMERCIAL TYPE STAINLESS STEEL OPEN BURNERS
Cook like a pro with up to 15,000 BTUs and infinite settings of easy-to-clean high performance open burners with porcelain/cast iron caps
VARISIMMER™ SETTING
The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
SURESPARK™ IGNITION SYSTEM
The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
| GENERAL | |
|---|---|
| Series Name | 5 Series |
| Fuel Type | Liquid Propane |
| Installation Type | Freestanding |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel with Polished Chrome Trim |
| Appliance Care |
• Removable porcelain burner bowls provide easy clean-up • Burner caps are easily removable for quick cleaning • Heavy-duty porcelainized cast-iron removable surface grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots |
| COOKTOP | |
| Burners/Elements | 4 |
| Burners/Elements Output | 4X 15,000 BTUs |
| Burners | Open |
| OVEN | |
| Capacity (cu. ft.) | 4 cu. ft. |
| Number of Ovens | Single |
| Programs |
• Natural airflow bake • Convection bake • Infrared broil • Convection infrared broil • Convection dehydrate • Convection defrost |
| FEATURES | |
| Technologies |
• VariSimmer™ • SureSpark™ Ignition System • ProFlow™ Convection Air Baffle • Gourmet-Glo™ Infrared Broiler |
| Convection | Yes |
| Oven Light | Yes |
| Additional Information |
• Stainless steel open burners with porcelain/cast iron caps provide restaurant-caliber performance • VariSimmer™ setting for all burners • All burners equipped with SureSpark™ Ignition System for consistent and reliable ignition • Automatic re-ignition: surface burners light at any position on the knob and re-light if extinguished, even on the lowest setting • Combination of single 30,000 BTU U-shaped burner and infrared broiler with SureSpark ignition system • Gourmet-Glo™ Infrared Broiler provides intense searing heat for broiling applications • Large-capacity oven with six rack positions • All convection modes utilize the ProFlow™ Convection Air Baffle, specifically designed for balanced airflow and even heat distribution • Convection fan switch conveniently located on control panel • Halogen oven lights provide excellent visibility throughout the oven cavity |
| ELECTRICAL INFORMATION | |
| Information |
• 120 V • 60 Hz |
| ACCESSORIES | |
| Optional |
• BG8530SS – 8"H backguard for 30" range • HS24530SS – high shelf for 30" range • P24CSTSS – countertop side trim (2 pieces) • P30CRTSS – countertop rear trim for 30" range • P30CBF4SS – curb base and custom curb base front for 30" range |
| DIMENSIONS | |
| Class Width | 30" |
| Width | 29.88 inch(es) / 75.9 cm |
| Height | 35.88 inch(es) / 91.14 cm |
| Depth (Without Handles) | 28.03 inch(es) / 71.2 cm |
| Weight | 330.01 lb(s) / 149.69 kg |
| Additional Dimensions |
• Oven(s) interior width: 23" (58.4 cm) • Oven(s) interior height: 16-1/8" (40.9 cm) • Oven(s) interior depth overall: 18-3/4" (47.6 cm) • Overall height to top of side trim: 35-7/8" (91.1 cm) min., 37" (94.0 cm) max.; legs adjust – 1-1/8" (2.9 cm) • Overall depth from rear* to end of side panel: 24-5/16" (61.8 cm) • To front of door: 25-3/4" (65.4 cm) • To end of landing ledge: 28-1/16" (71.2 cm) • To end of door handle: 28-11/16" (72.9 cm) • *Add 1" to overall depth for ranges with backguards installed against a combustible wall • Additions to base height: • To top of island trim: add 1" (2.5 cm) • To top of backguard: add 8" (20.3 cm) • To top of high shelf: add 23-1/2" (59.7 cm) |
| WARRANTY | |
| Warranty |
• Two-year full warranty – complete product • Ninety-day full warranty – cosmetic parts such as glass, painted items, and decorative items • Five-year limited warranty – all gas burners, electric elements (Dual Fuel) |
| UPC | |
| UPC# | 800284098461 |
-
Viking 24-inch dishwasher with installed Professional steel panel. This dishwasher provides spotless dishes + More
-

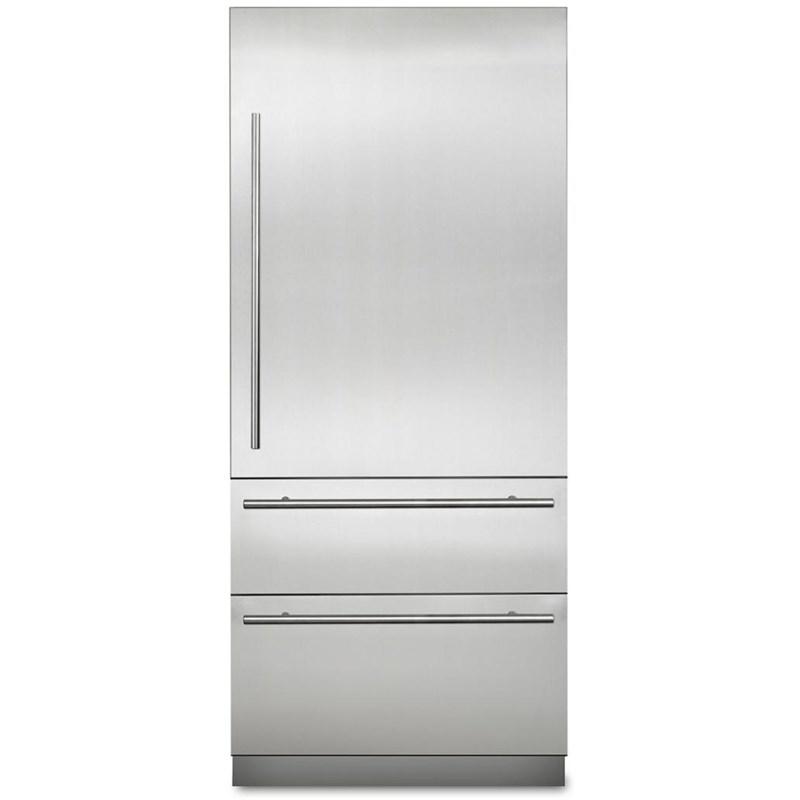

This 36-inch wide Viking fully integrated bottom-freezer refrigerator with installed 6 Series panel. This + More
-
