Cooktops
-
KCGD506GSS
(Cooktops - Gas)This 36” gas cooktop includes Downdraft, an integrated ventilation system that doesn’t require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.
Product Features / Choose an option
DOWNDRAFT VENTILATION
Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
EVEN-HEAT™ 5K BTU SIMMER BURNER
A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
3-SPEED FAN CONTROL
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
CONVERTIBLE TO DUCT-FREE VENTILATION
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
ELECTRONIC IGNITION AND AUTOMATIC REIGNITION
Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
FULL-WIDTH CAST-IRON GRATES
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
LP CONVERSION KIT INCLUDED
Allows you to convert the cooktop so it can be used with LP gas.
| GENERAL | |
|---|---|
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Fuel Type | Natural Gas |
| Type | Built-In |
| COOKTOP | |
| Burners/Elements | 5 |
| Power Output |
• Left Front Power: 10,000 BTU • Left Rear Power: 5000 BTU • Right Rear Power: 17,000 BTU • Center Rear Power: 12,500 BTU • Center Front Power:15,000 BTU |
| Burners | Sealed |
| Surface Features |
• Stainless Steel Knobs • Full-Width Cast-Iron Grates • Stainless Steel Surface |
| FEATURES | |
| Technologies | 5K BTU Even-Heat™ |
| Wi-Fi | No |
| Downdraft Ventilation | Yes |
| Additional Information |
• 300 CFM Exhaust Rating • 3-Speed Fan Control • Convertible to Duct-Free Ventilation • Melt Cap • Electronic Ignition and Automatic Re-Ignition |
| ELECTRICAL INFORMATION | |
| Information |
• 120 Volts • 60 Hertz • 15 Amps |
| ACCESSORIES | |
| Included | LP Conversion Kit |
| DIMENSIONS | |
| Class Width | 36" |
| Width | 36 inch(es) / 91.44 cm |
| Height | 2.6 inch(es) / 6.6 cm |
| Depth | 21.5 inch(es) / 54.61 cm |
| Weight | 92 lb(s) / 41.73 kg |
| SHIPPING DIMENSIONS | |
| Width | 41.5 inch(es) / 105.41 cm |
| Height | 23.81 inch(es) / 60.48 cm |
| Depth | 26.44 inch(es) / 67.15 cm |
| Weight | 97 lb(s) / 44 kg |
| WARRANTY | |
| Warranty | 1 Year Parts and Labor |
| UPC | |
| UPC# | 883049415062 |
-

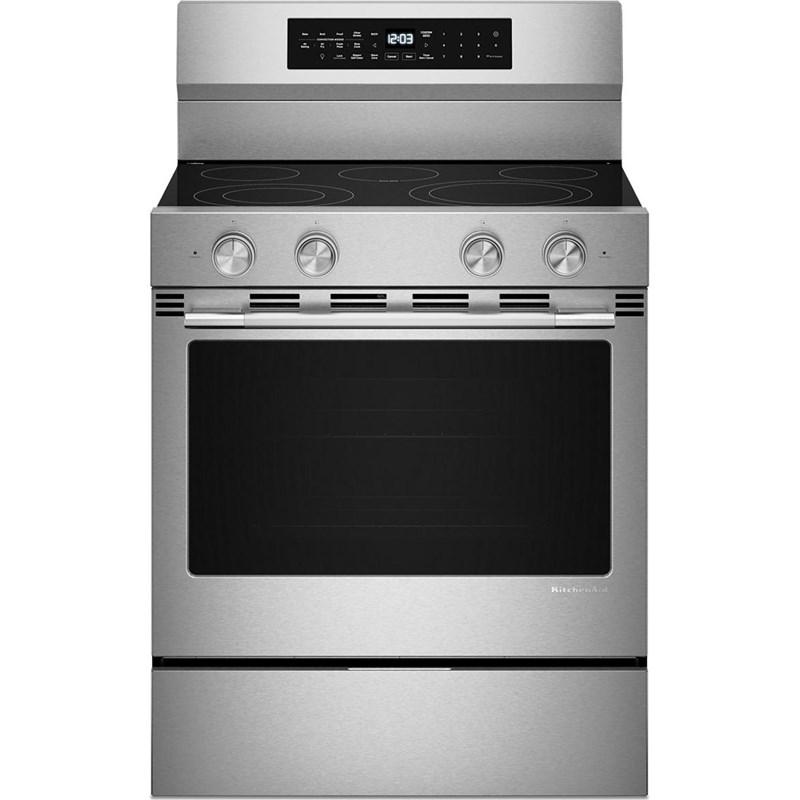

Enjoy a range of possibilities with our most powerful KitchenAid 30-inch Electric Range available. A + More
-
