Cooktops
-
VRT7486GSSLP
(Cooktops - Gas)This Viking 7 Series, 48-inch gas rangetop with griddle features Elevation™ burners, VariSimmer™ setting and SureSpark™ ignition system.
Product Features / Choose an option
ELEVATION™ BURNERS
Elevation™ Burners with brass flame ports boast 23,000 (NG) BTUs across the front of all width configurations, with multiple 15,000 (NG) BTUs and one 8,000 (NG) BTU burner across the rear.
VARISIMMER™
The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
COOLLIT™ LED LIGHTS
EXCLUSIVE CoolLit™ LED Lights in signature Viking blue illuminate cooking zones while in use.
EASY-TO-CLEAN SURFACE
Exclusive seamless, heavy gauge porcelain burner pan with elevated flame ports prevent spillovers from baking on, making cleanup easy.
SUPERSPARK™ IGNITION SYSTEM
The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
| GENERAL | |
|---|---|
| Series Name | 7 Series |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Fuel Type | Liquid Propane |
| Type | Rangetop |
| COOKTOP | |
| Burners/Elements | 7 |
| Power Output |
• (3) Front Burners: 20,000 BTU • (2) Rear Burners: 13,500 BTU • (1) Griddle: 13,500 BTU • (1) Rear Burner: 8,000 BTU |
| Burners | Sealed |

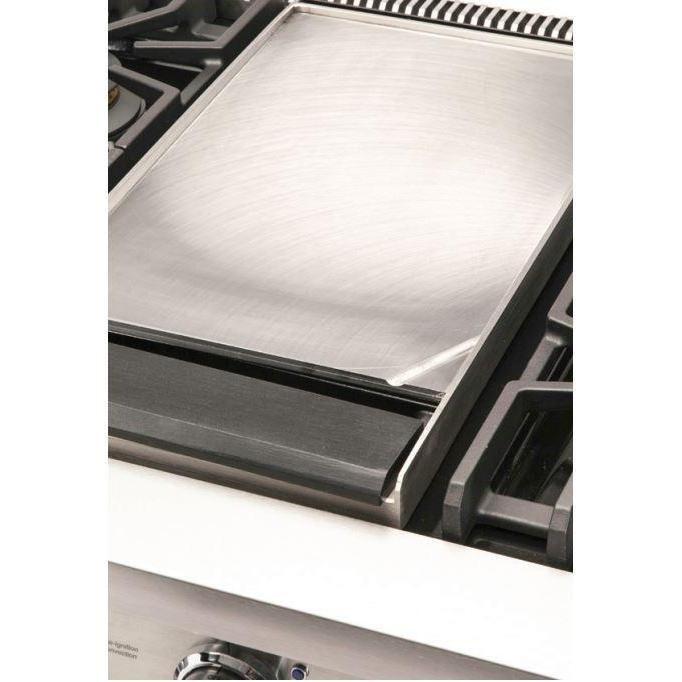

| Other | Griddle |
| Surface Features | Seamless, Heavy Gauge Porcelain Burner Pan with Elevated Flame Ports |
| FEATURES | |
| Technologies |

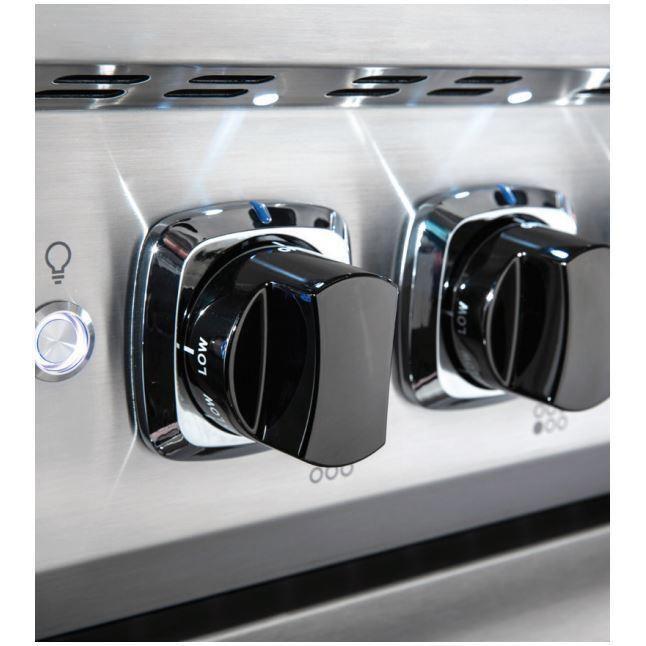

• Viking Elevation™ Burners • VariSimmer™ Setting • SureSpark™ Ignition System • BlackChrome™ Knobs with CoolLit™ LED Backlighting |
| Additional Information |
• Seamless, Heavy Gauge Porcelain Burner Pan with Elevated Flame Ports Prevent Spillovers from Baking on, Making Cleanup Easy • Continuous Grate Design Allows Easy Movement of Pots and Pans From Burner to Burner |
| ELECTRICAL INFORMATION | |
| Information | 120 V |
| ACCESSORIES | |
| Optional |
• BG107482SS – 10"H. Backguard for • HS24748SS – 24"H. High Shelf • P48CRTSS– Countertop Rear Trim • CRG7VGR – ViChrome Griddle Accessory (for use with Griddle Model) • CBGVGR – Bamboo Cover for 7 Series • LPKVGR – LP/Propane Conversion Kit for 7 Series • GCKVGR – Gas Connector Kit for 7 Series • WOKVGR7 – Wok Ring Accessory for 7 Series |
| DIMENSIONS | |
| Class Width | 48" or More |
| Width | 47.87 inch(es) / 121.6 cm |
| Height | 7.99 inch(es) / 20.3 cm |
| Depth | 30 inch(es) / 76.2 cm |
| Additional Dimensions |
• Cutout Dimensions: • Cutout Width: 48" (121.9 cm) • Cutout Height: 7-5/8" (19.4 cm) • Cutout Depth: min. 24" (61.0 cm), max. 25-1/4" (64.1 cm) |
| SHIPPING DIMENSIONS | |
| Weight | 192 lb(s) / 87.09 kg |
| WARRANTY | |
| Warranty |
• Two-Year Full – Complete Product • Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items • Five-Year Limited – Gas Burners |
-
