Ventilation
-
VWH536481SS

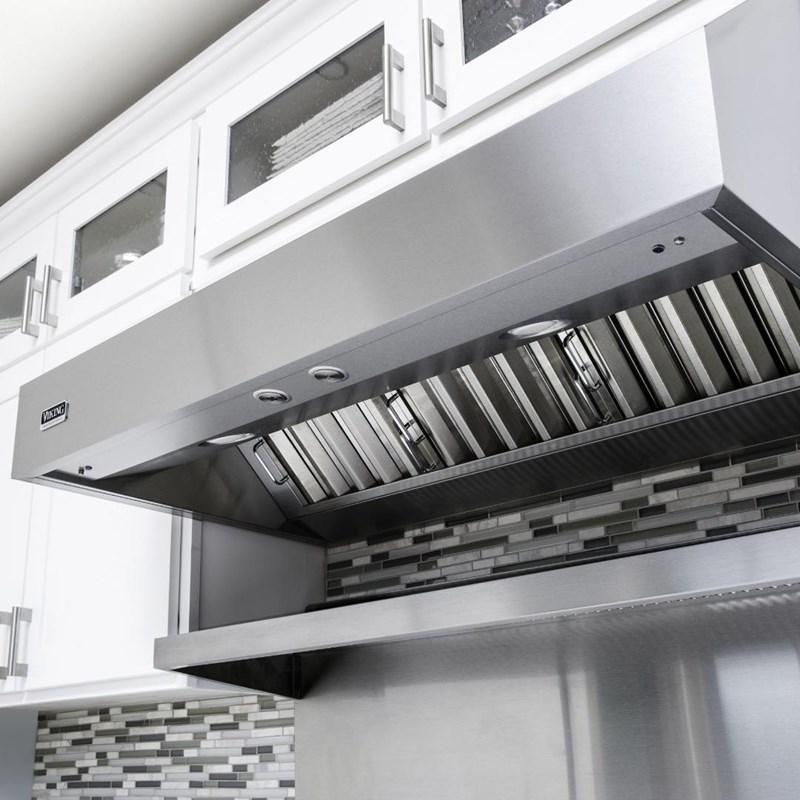

(Ventilation - Hood Shells)This 36-inch Viking wall mount hood shell features bright LED lighting, heat lamps, backlit LED knobs and a heat sensor. (Blower is sold separately).
Product Features / Choose an option

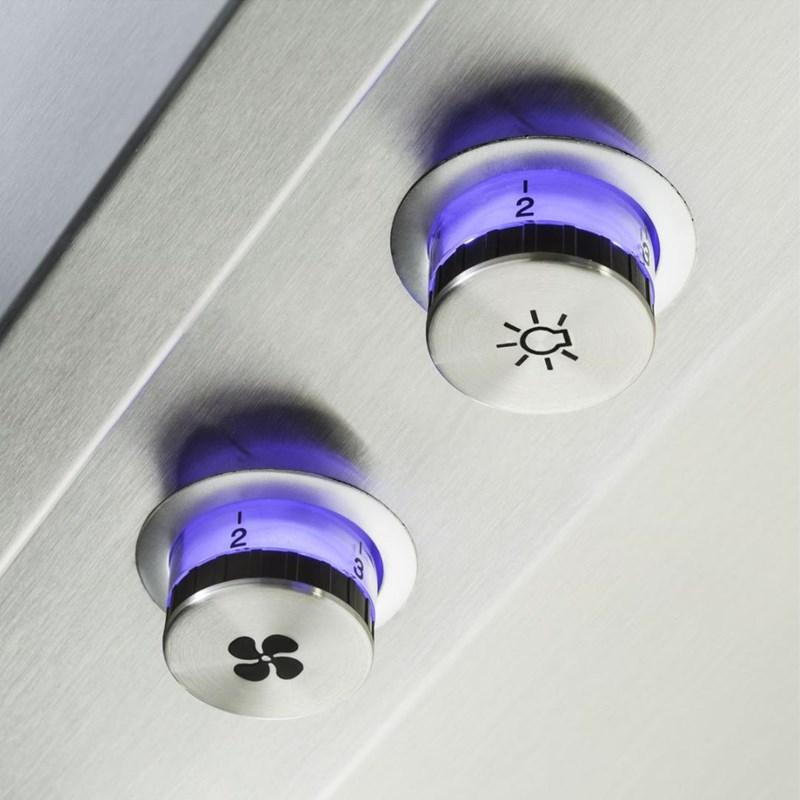

BACKLIT LED KNOBS
Backlit LED knobs extend and illuminate to control lighting level and fan speed, then fully retract when not in use.
BRIGHT LED LIGHTING
Dimmable lighting controls provide custom illumination for enhanced surface cooking visibility. Long-life LED light bulbs are energy efficient and consumer replaceable.
QUIETEST HOOD AND VENTILATOR COMBINATION
Tough-box ventilator housing protects blower and quietly removes smoke and odor.
HEAT SENSOR
Heat sensor automatically adjusts speed of blower to high when excessive heat is detected.
HEAT LAMPS
Ready when you are. Heat lamps conveniently keep food warm until it is ready to be served.
VIRTUALLY SEAMLESS DESIGN
Blend in and stand out with a smooth, clean look and a virtually seamless design.
| GENERAL | |
|---|---|
| Series Name | 5 Series |
| Blower Included | No |
| Style | Standard |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Installation | Wall Mount |
| FEATURES | |
| Dishwasher-Proof Filters | Yes |
| Ducting Information |
• Interior Duct Size 7"/10" (17.8/25.4 cm) • Exterior Duct Size 10" (24.5 cm) |
| Speeds | Multi-Speed Ventilator Control Knob |
| Additional Information |
• Backlit LED Knobs Extend and Illuminate to Control Lighting Level and Fan Speed, then Fully Retract when Not in Use • Seamless Design • Heavy-Duty, Commercial-Type Size, Construction • Tough-Box Ventilator Housing • Maintenance-Free Ventilators • Built-in Heat Sensor • Dimmable Lighting Controls • Long-Life LED Light Bulbs • Commercial-Type Baffle Filters • Low-Profile Filter System |
| ELECTRICAL INFORMATION | |
| Information |
• Interior—Maximum Amps 4.2/5.2/8.2 • Exterior—Maximum Amps 8.0/5.3 • In-Line—Maximum Amps 5.3/7.2 |
| ACCESSORIES | |
| Optional |
• DCW36SS – Wall Hood Duct • WGP36SS – Wall Hood Warming Shelf Panels • BKS36SS – Wall Hood Backsplash • VSIL10 - Duct Silencer Accessory for 10" duct • ILVK - Vibration Isolator Kit Accessory • Interior Ventilator Kits VINV300/600/1200 • Exterior Ventilator Kits DEV900/1200 • In-Line Ventilator Kits DIL1200 |
| DIMENSIONS | |
| Class Width | 36" |
| Width | 36 inch(es) / 91.44 cm |
| Height | 18 inch(es) / 45.72 cm |
| Depth | 24 inch(es) / 60.96 cm |
| SHIPPING DIMENSIONS | |
| Weight | 67.99 lb(s) / 30.84 kg |
| WARRANTY | |
| Warranty |
• 2-Year Full – Complete Product • 90-Day Full – Cosmetic Parts Such as Glass, Painted Items and Decorative Items • 5-Year Limited – Ventilator Motors |
