Ventilation
-
CHX9130SQB1

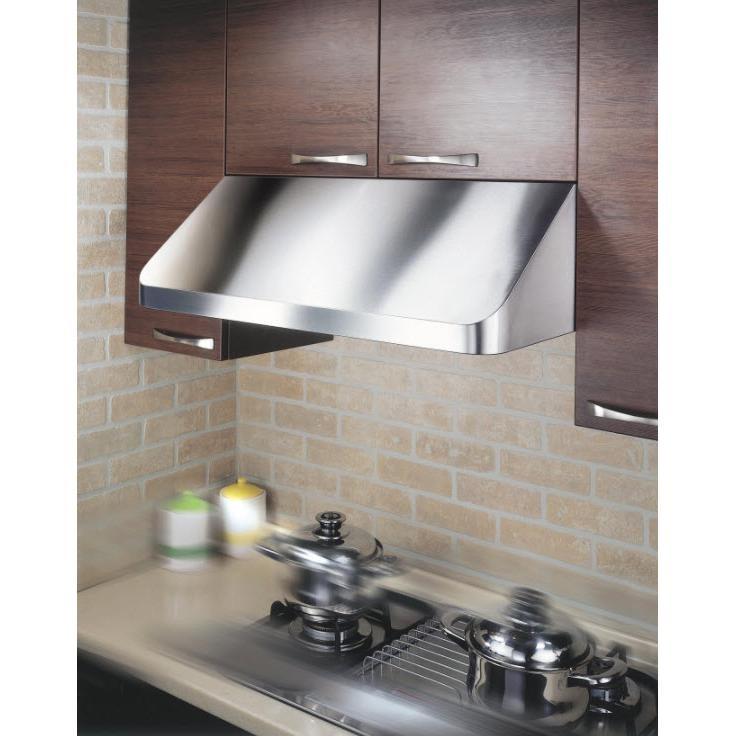

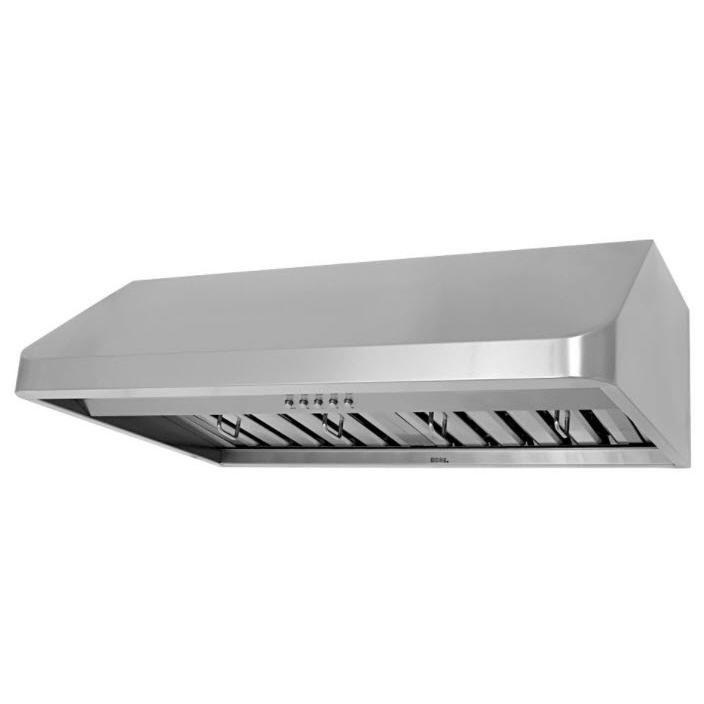

(Ventilation - Range Hoods)This Kobe Brillia under cabinet hood features 3 speed with the QuietMode™ at 300 CFM. It also boasts mechanical push button Control with 3w LED lights. KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.
Product Features / Choose an option

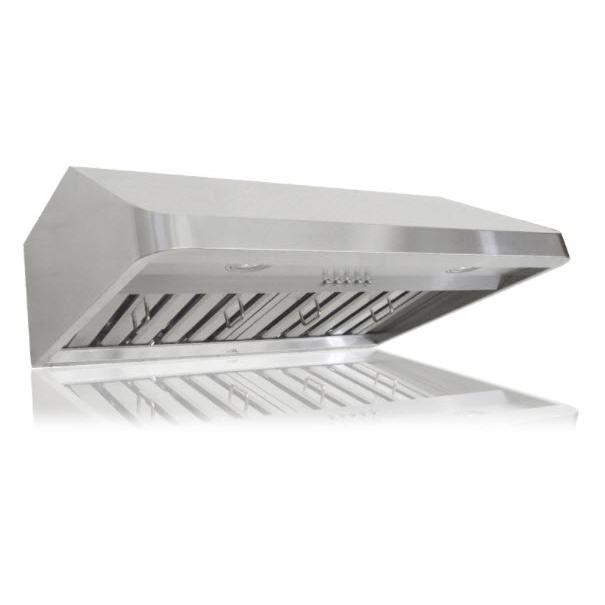

BAFFLE FILTERS
Dishwasher safe professional baffle filters allow for easy cleaning.
LED LIGHTS
The hood is equipped with 3W LED lights
QUIETMODE™
This unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone).
ATTRACTIVE APPEARANCE
The seamless curves and stylish appearance of the hood will compliment any kitchen
EASY TO CLEAN
KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.
EASY TO INSTALL
Our special design makes installation fast and easy
VERSATILE INSTALLATION
This versatile hood can be used for under cabinet or for wall mount style with the optional duct cover.
QUALITY
Parts are checked for defects and designed for trouble free long term use.
| GENERAL | |
|---|---|
| Series Name | Brillia |
| Blower Included | Yes |
| Airflow | 680 CFM |
| Style | Standard |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Installation | Under-Cabinet |
| FEATURES | |
| Dishwasher-Proof Filters | Yes |
| Technologies | QuietMode™ |
| Ducting Information |
• Top 6" Round • Top 3-1/4" x 10" Rectangular • Rear 3-1/4" x 10" Rectangular |
| Speeds | 3 |
| Additional Information |
• LED lights • Baffle filters • Mechanical Push Button Control • Twin Vertical Turbine Impeller |
| ELECTRICAL INFORMATION | |
| Information | 2.21 A |
| CERTIFICATIONS AND APPROVALS | |
| Hvi Certified | No |
| Energy Star Certified | No |
| ACCESSORIES | |
| Optional |
• Stainless Steel Back Splash: • 30" Stainless Steel Back Splash – Model No. SSP30 |

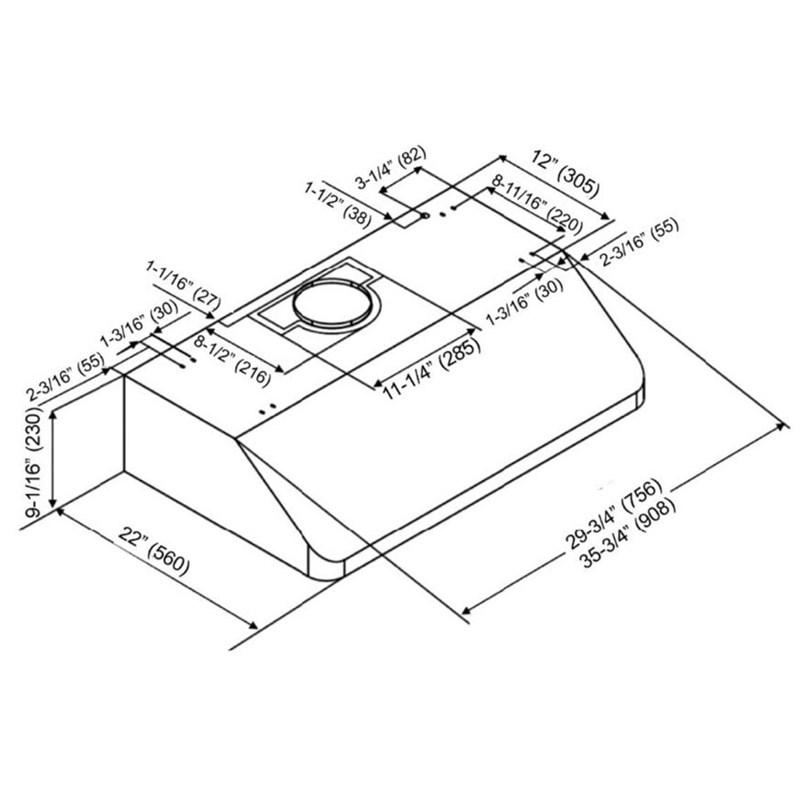

| DIMENSIONS | |
| Class Width | 30" |
| Width | 29.75 inch(es) / 75.57 cm |
| Height | 9.06 inch(es) / 23.01 cm |
| Depth | 22 inch(es) / 55.88 cm |
| Weight | 44 lb(s) / 19.96 kg |
| SHIPPING DIMENSIONS | |
| Weight | 50.51 lb(s) / 22.91 kg |
| WARRANTY | |
| Warranty | Limited 2 years warranty part and labor |
